Highly reliable YUNYI SMF Transient Voltage Suppressors (TVS)

Short Description:

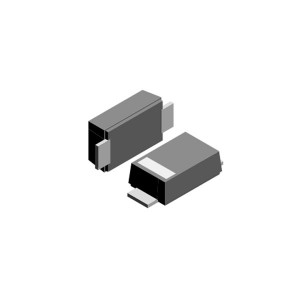

Packaging Style: SMF

Introduction: YUNYI SMF Series Transient Voltage Suppressors (TVS), whose chip and packaging structure is self-developed, is used to protect vulnerable circuit from being damaged by transient current and dramatic change of voltage. With the high quality strictly controlled under the system of IATF16949,ISO14001, ISO 9001:2005, OHSAS18001, VDA6.3, etc, YUNYI TVS can function well in complex and harsh environment.

Send email to us

Product Detail

Monitoring response time

Measuring range

Product Tags

Advantages of YUNYI's TVS:

1. Low profile package

2. Excellent clamping capability

3. High temperature reflow soldering

4. Small size, helping to optimize the circuit board space

Steps of Chip Production:

1. Mechanically Printing（Super-precise automatic wafer printing）

2. Automatic First-etching （Automatic Etching Equipment，CPK>1.67）

3. Automatic Polarity Test（Precise Polarity Test）

4. Automatic Assembly （Self-developed Automatic Precise Assembly）

5. Soldering (Protection with Mixture of Nitrogen & Hydrogen?Vacuum Soldering )

6. Automatic Second-etching (Automatic Second-etching with Ultra-pure Water)

7. Automatic Gluing (Uniform Gluing & Precise Calculation are Realized by Automatic Precise Gluing Equipment)

8. Automatic Thermal Test (Automatic Selection by Thermal Tester)

9. Automatic Test(Multifunctional Tester)

Parameters:

Part Number		?V_RWM?	?V_BR@I_T		I_T	I_R @ V_RWM?	I_PP?	Vc @ I_PP?
（Uni）	（Bi）	Max（V）	Min(V)	Max (V)	mA	Max(μA)	A	V
SMF5.0A	SMF5.0CA	5.0	6.40	7.07	10	400.0	21.74	9.2
SMF6.0A	SMF6.0CA	6.0	6.67	7.37	10	400.0	19.42	10.3
SMF6.5A	SMF6.5CA	6.5	7.22	7.98	10	250.0	17.86	11.2
SMF7.0A	SMF7.0CA	7.0	7.78	8.60	10	100.0	16.67	12.0
SMF7.5A	SMF7.5CA	7.5	8.33	9.21	1	50.0	15.50	12.9
SMF8.0A	SMF8.0CA	8.0	8.89	9.83	1	25.0	14.71	13.6
SMF8.5A	SMF8.5CA	8.5	9.44	10.40	1	10.0	13.89	14.4
SMF9.0A	SMF9.0CA	9.0	10.00	11.10	1	5.0	12.99	15.4
SMF10A	SMF10CA	10.0	11.10	12.30	1	2.5	11.76	17.0
SMF11A	SMF11CA	11.0	12.20	13.50	1	2.5	10.99	18.2
SMF12A	SMF12CA	12.0	13.30	14.70	1	2.5	10.05	19.9
SMF13A	SMF13CA	13.0	14.40	15.90	1	1.0	9.30	21.5
SMF14A	SMF14CA	14.0	15.60	17.20	1	1.0	8.62	23.2
SMF15A	SMF15CA	15.0	16.70	18.50	1	1.0	8.20	24.4
SMF16A	SMF16CA	16.0	17.80	19.70	1	1.0	7.69	26.0
SMF17A	SMF17CA	17.0	18.90	20.90	1	1.0	7.25	27.6
SMF18A	SMF18CA	18.0	20.00	22.10	1	1.0	6.85	29.2
SMF19A	SMF19CA	19.0	21.10	23.30	1	1.0	6.54	30.6
SMF20A	SMF20CA	20.0	22.20	24.50	1	1.0	6.17	32.4
SMF22A	SMF22CA	22.0	24.40	26.90	1	1.0	5.63	35.5
SMF24A	SMF24CA	24.0	26.70	29.50	1	1.0	5.14	38.9
SMF26A	SMF26CA	26.0	28.90	31.90	1	1.0	4.75	42.1
SMF28A	SMF28CA	28.0	31.10	34.40	1	1.0	4.41	45.4
SMF30A	SMF30CA	30.0	33.30	36.80	1	1.0	4.13	48.4
SMF33A	SMF33CA	33.0	36.70	40.60	1	1.0	3.75	53.3
SMF36A	SMF36CA	36.0	40.00	44.20	1	1.0	3.44	58.1
SMF40A	SMF40CA	40.0	44.40	49.10	1	1.0	3.10	64.5
SMF43A	SMF43CA	43.0	47.80	52.80	1	1.0	2.88	69.4
SMF45A	SMF45CA	45.0	50.00	55.30	1	1.0	2.75	72.7
SMF48A	SMF48CA	48.0	53.30	58.90	1	1.0	2.58	77.4
SMF51A	SMF51CA	51.0	56.70	62.70	1	1.0	2.43	82.4
SMF54A	SMF54CA	54.0	60.00	66.30	1	1.0	2.30	87.1
SMF58A	SMF58CA	58.0	64.40	71.20	1	1.0	2.14	93.6
SMF60A	SMF60CA	60.0	66.70	73.70	1	1.0	2.07	96.8
SMF64A	SMF64CA	64.0	71.10	78.60	1	1.0	1.94	103.0
SMF70A	SMF70CA	70.0	77.80	86.00	1	1.0	1.77	113.0
SMF75A	SMF75CA	75.0	83.30	92.10	1	1.0	1.65	121.0
SMF78A	SMF78CA	78.0	86.70	95.80	1	1.0	1.59	126.0
SMF85A	SMF85CA	85.0	94.40	104.00	1	1.0	1.46	137.0
SMF90A	SMF90CA	90.0	100.00	111.00	1	1.0	1.37	146.0
SMF100A	SMF100CA	100.0	111.00	123.00	1	1.0	1.23	162.0
SMF110A	SMF110CA	110.0	122.00	135.00	1	1.0	1.13	177.0
SMF120A	SMF120CA	120.0	133.00	147.00	1	1.0	1.04	193.0
SMF130A	SMF130CA	130.0	144.00	159.00	1	1.0	0.96	209.0
SMF140A	SMF140CA	140.0	155.00	171.00	1	1.0	0.89	224.0
SMF150A	SMF150CA	150.0	167.00	185.00	1	1.0	0.82	243.0
SMF160A	SMF160CA	160.0	178.00	197.00	1	1.0	0.77	259.0
SMF170A	SMF170CA	170.0	189.00	209.00	1	1.0	0.73	275.0
